Horizontal Submersible Well Pump with Cooling Jacket for Reservoir & Irrigation Applications in Southeast Asia

Project Overview

A client in Southeast Asia operates a large-scale reservoir used for agricultural irrigation and industrial water storage. Due to seasonal climate conditions, the reservoir faces:

• Significant water level fluctuations during rainy and dry seasons
• Low water circulation across a wide surface area
• Increased risk of motor overheating in stagnant zones

To ensure reliable water supply, the client required a high-capacity, low-maintenance pumping system capable of continuous operation under changing environmental conditions.

Engineering Challenge

The project presented several key technical challenges:

• Maintaining stable pump performance under variable water levels
• Ensuring effective motor cooling in low-flow water environments
• Avoiding frequent pump repositioning during seasonal changes
• Supporting continuous operation during flood season

Traditional vertical submersible pumps were not suitable due to their dependence on surrounding water flow for cooling.

Customized Pump Solution

After a detailed site analysis, our engineering team recommended a:

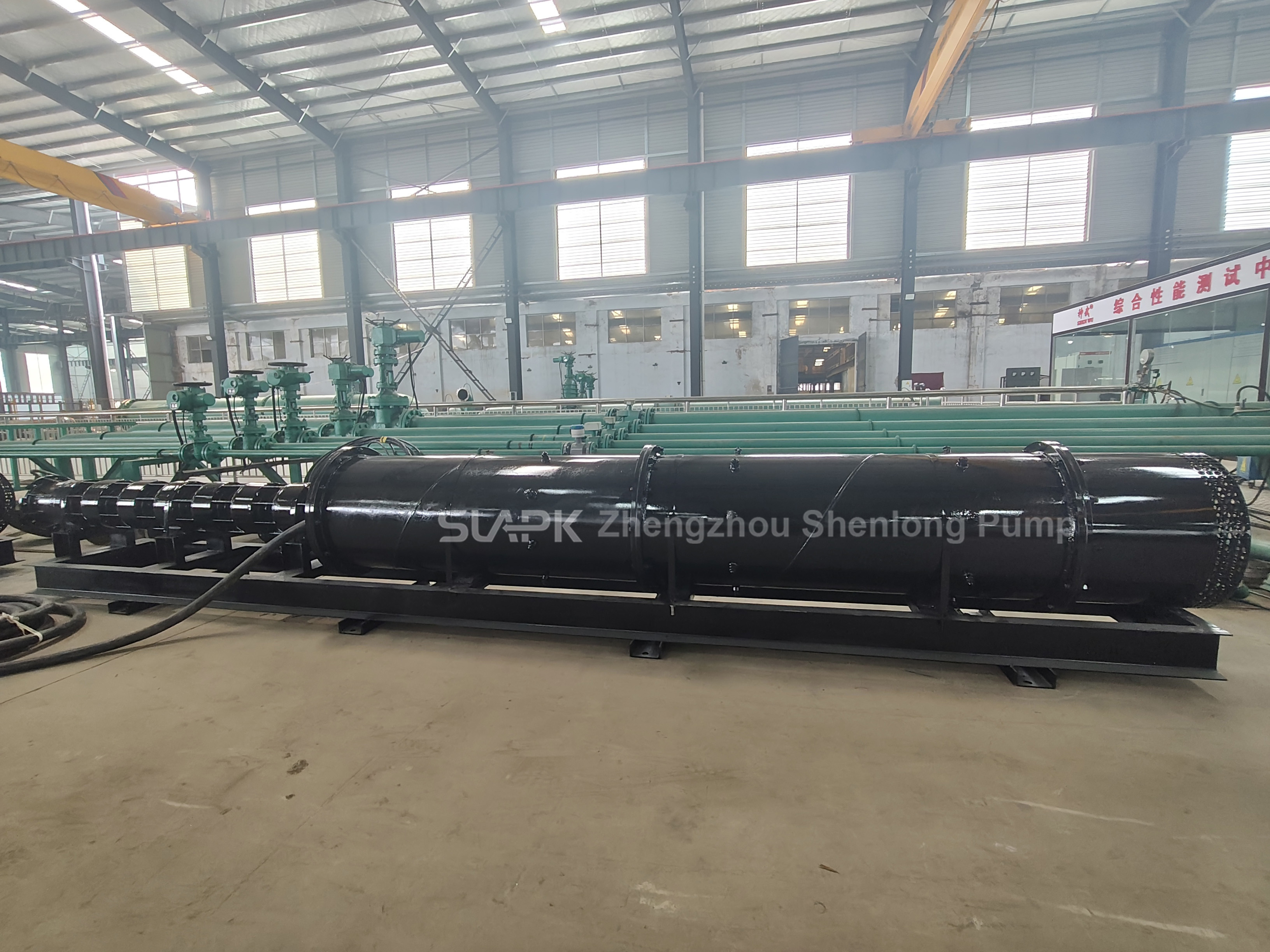

Horizontal Submersible Well Pump with Integrated Cooling Jacket

This design is specifically engineered for clean water applications in reservoirs, lakes, and large open water bodies.

Pump Technical Specifications

Application Scenario

The pump is installed horizontally at the bottom of the reservoir, supplying water for:

• Agricultural irrigation systems
• Industrial water usage

Why Horizontal Configuration Matters

Unlike vertical pumps, this horizontal submersible pump:

• Maintains stable operation even when water levels drop
• Eliminates alignment and suction issues
• Provides better mechanical stability in shallow conditions

Advanced Cooling System

The integrated cooling jacket ensures:

• Continuous motor temperature control
• Safe operation in low-flow or stagnant water zones
• Extended equipment lifespan

This makes it ideal for large reservoirs where natural water circulation is limited.

Key Advantages of the Solution

1. Reliable Operation Under Fluctuating Water Levels

The fully submersible design ensures uninterrupted performance during both:

• Flood season (high water levels)
• Dry season (low water levels)

2. Cooling Jacket for Enhanced Motor Protection

In large water bodies such as reservoirs and ponds:

• Prevents motor overheating
• Enables continuous heavy-duty operation
• Reduces risk of thermal failure

3. Horizontal Design for Stability

Compared to vertical pumps:

• Lower center of gravity
• Improved stability in shallow water
• Reduced risk of suction problems

4. Low Maintenance Requirement

• No need for seasonal repositioning
• Reduced on-site labor
• Long service intervals

Ideal for remote or large-scale installations

5. Optimized for Clean Water Applications

Designed for:

• Reservoir water
• Irrigation systems
• Low-sand-content rivers

Ensures efficient and long-term performance

Project Results

After installation, the system has successfully operated through multiple seasonal cycles, delivering:

• Stable high-flow performance (800 m³/h)
• Zero motor overheating incidents
• Significantly reduced maintenance workload

The client achieved reliable water supply during both flood and dry seasons, confirming the effectiveness of the horizontal submersible pump design in demanding reservoir environments.

Looking for a Reliable Reservoir Pump Solution?

If your project involves:

• Fluctuating water levels
• Large reservoirs or open water bodies
• Flood-prone environments
• Demand for low-maintenance systems

Our horizontal submersible well pumps with cooling jackets are specifically designed to meet these challenges.
