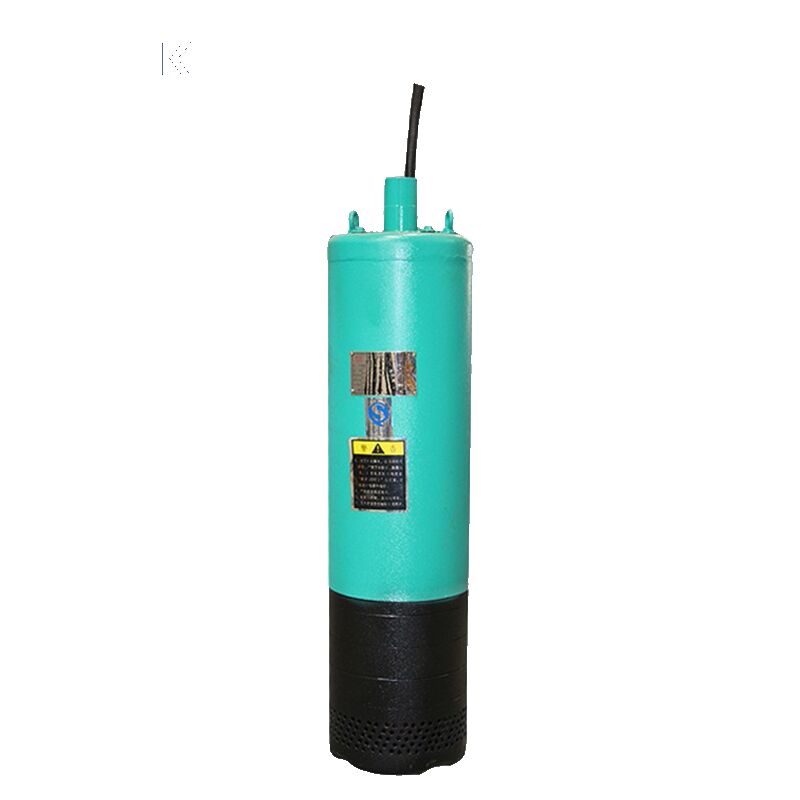

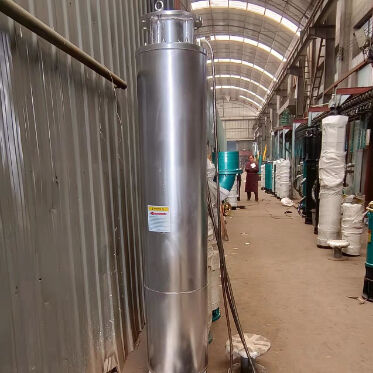

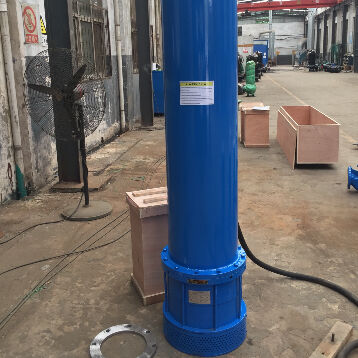

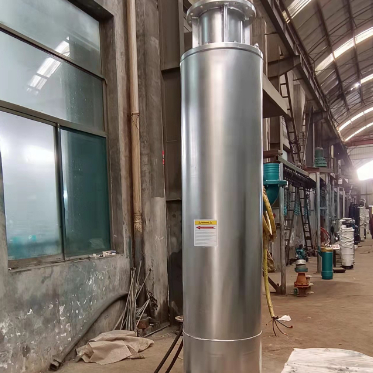

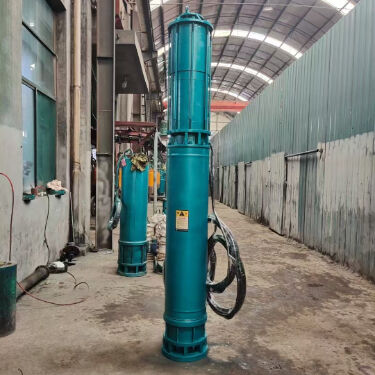

Bottom Suction Electric Submersible Pump Engineered for High Head Drainage and Low-Level Water Extraction

Productomschrijving

High Head Multistage Bottom Suction Submersible Sewage Pump for Deep Pit Drainage

In deep excavation projects, the real challenge is not “moving water” — it is lifting high volumes from confined pits under unstable conditions without interruption. A conventional sewage pump fails when suction level drops, head requirement increases, or debris concentration rises.

The High Head Multistage Bottom Suction Submersible Sewage Pump is engineered specifically for deep pit drainage scenarios where lift height, continuous duty, and anti-clog reliability are mission-critical.

1. Why Deep Pit Drainage Requires a Different Pump Architecture

Most standard submersible sewage pumps are:

• Single-stage

• Side suction

• Designed for low to medium head

In deep shafts, foundation pits, mining sumps, or underground utility chambers, you typically face:

• 40m–150m vertical lift

• Limited installation space

• Sediment-heavy wastewater

• Low residual water level requirement

• Continuous 24/7 operation

This is where multistage + bottom suction configuration becomes structurally superior.

2. Core Engineering Structure

Multistage High Head Design

The multi-impeller hydraulic structure allows:

• Stable high head output

• Reduced radial load per stage

• Higher efficiency under deep lift conditions

• Lower motor overload risk

Compared with single-stage pumps, the head curve is more stable and energy consumption per cubic meter is lower at high lift points.

Bottom Suction Structure

Bottom inlet configuration provides:

• Maximum drainage down to minimal residual water level

• Better cooling performance under low water conditions

• Improved suction performance in confined pits

This design ensures water can be drained close to the pit floor, reducing manual cleanup.

Heavy-Duty Sewage Handling Capacity

The hydraulic channel is optimized for:

• Solid particle handling

• Sand-laden water

• Construction sludge

• Fibrous debris (optional cutting mechanism)

Impeller options:

• Closed multistage impeller

• Semi-open anti-block design

• Wear-resistant alloy version for abrasive fluids

3. Typical Application Scenarios

This pump is not for “normal” drainage. It is built for high-demand environments such as:

• Deep foundation pit drainage

• Mining vertical shaft dewatering

• Underground parking construction

• Tunnel and metro excavation projects

• Industrial sump systems

• Municipal emergency flood pumping

If your project requires stable high lift and bottom-level drainage, this configuration is significantly more reliable than horizontal centrifugal or surface-installed systems.

4. Performance Range (Customizable)

Typical operating parameters:

• Flow rate: 10–500 m³/h

• Head: 40–150 meters

• Power: 7.5–160 kW

• Voltage: 380V / 415V / 440V / 660V

• Frequency: 50Hz / 60Hz

• Insulation class: F / H

• Protection: IP68

Material options:

• Cast iron

• Ductile iron

• Stainless steel (304 / 316)

• High chrome alloy for abrasive conditions







5. Engineering Advantages Over Traditional Systems

Compared to Surface Pumps

• No priming required

• No cavitation risk from long suction pipelines

• Compact installation footprint

• Lower pipeline complexity

Compared to Standard Submersible Sewage Pumps

• Higher head capacity

• Better bottom-level drainage

• Stronger overload resistance

• Improved efficiency at deep lift points

6. Operational Reliability Design

To ensure long service life under harsh conditions:

• Double mechanical seal (SiC–SiC optional)

• Oil chamber leakage detection

• Overheat protection

• Heavy-duty bearings

• Reinforced shaft design

• Optional soft start / VFD compatibility

Continuous duty operation (S1) is standard configuration.

7. Custom Engineering Support

Each deep pit condition is different. We provide:

• Project-based hydraulic selection

• Head-loss calculation

• Cable length customization

• Explosion-proof options (if required)

• Control panel integration

• OEM/ODM production support

Send us your required flow, vertical lift, medium type, and installation depth — we will provide an optimized pump model instead of a generic recommendation.
