200m³/h Flow, 37kW Submersible Pump for Drinking Water Applications
In modern water supply systems, ensuring a stable and safe source of drinking water is essential. The 200m³/h flow, 37kW submersible pump for well water is specifically designed to deliver high-efficiency groundwater extraction for potable water applications. With robust construction, energy-efficient operation, and reliable performance, this pump is widely used in deep wells, municipal water systems, and large-scale water supply projects.
Product Overview

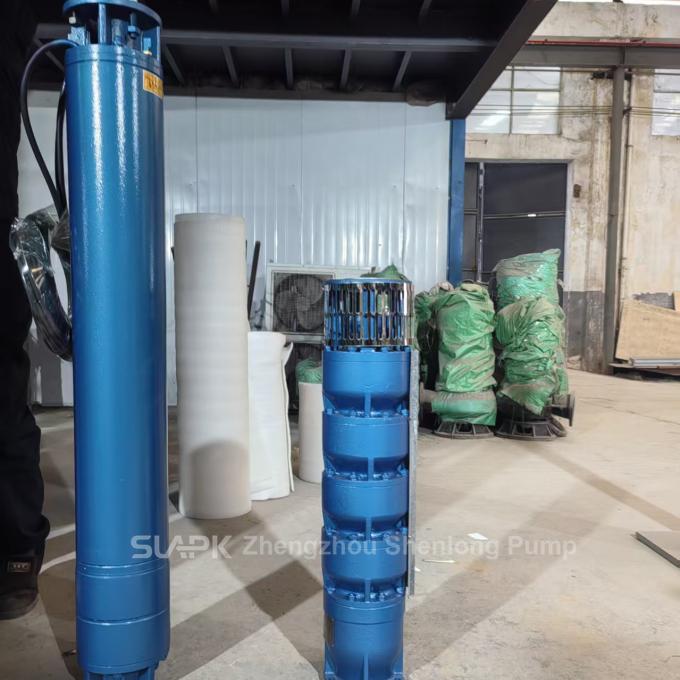

The 200m³/h submersible pump with a 37kW motor is engineered for high-capacity well water extraction. It operates fully submerged, directly pushing water to the surface, which significantly reduces energy losses compared to traditional surface pumps. Designed for clean water or lightly contaminated groundwater, this pump ensures stable and continuous water supply, making it ideal for drinking water systems.
- High flow rate for large-scale water supply
- Energy-efficient 37kW motor
- Stable and continuous operation
- Suitable for deep well installations
- Low noise and minimal vibration
Technical Specifications
| Parameter |
Specification |
| Flow Rate |
200 m³/h |
| Motor Power |
37 kW |
| Pump Type |
Deep Well Submersible Pump |
| Application |
Drinking Water / Well Water |
| Frequency |
50 Hz |
| Voltage |
380 V |
| Installation |
Vertical Submersible |
| Cooling Method |
Water-filled Motor Cooling |
These specifications make the pump suitable for medium to large-scale potable water supply systems.
Key Features and Advantages
High-Efficiency Hydraulic Performance
The pump adopts an advanced multi-stage impeller design, which ensures high efficiency and stable water output. It is optimized for deep well applications, providing consistent pressure and flow.
Safe for Drinking Water Applications
All wetted components can be manufactured using stainless steel or food-grade materials, ensuring that the pumped water remains clean and uncontaminated. This is critical for drinking water systems.
Reliable Submersible Motor
The 37kW motor is designed for continuous underwater operation. With high-grade insulation and sealing technology, it prevents water ingress and ensures long-term durability.
Energy Saving Operation
By operating directly inside the water source, the pump eliminates suction losses and improves overall system efficiency, reducing operational costs.
Low Maintenance Requirements
The integrated structure reduces mechanical wear and simplifies maintenance, making it ideal for remote or unattended installations.
Application Scenarios
The 200m³/h 37kW submersible pump for well water is widely used in various drinking water supply systems:
Municipal Water Supply
Provides clean groundwater for urban and rural drinking water distribution networks.
Deep Well Water Extraction
Suitable for deep wells in agricultural areas and remote regions where groundwater is the primary water source.
Industrial Water Supply
Used in industries requiring large volumes of clean water, such as food processing and beverage production.
Rural Drinking Water Projects
Ideal for government and NGO water supply projects aimed at improving access to safe drinking water.
Irrigation with Potable Water Standards
Can also be used where irrigation water quality must meet high cleanliness standards.
Why Choose a Submersible Pump for Well Water?
Using a submersible pump for drinking water wells offers several advantages:
- Higher efficiency due to direct water pushing instead of suction
- No priming required, simplifying operation
- Reduced risk of cavitation
- Quiet operation, suitable for residential areas
- Space-saving installation inside the well
These benefits make submersible pumps the preferred choice for modern well water systems.
Installation and Operation Tips
To ensure optimal performance in drinking water applications:
- Install the pump at the correct depth below the dynamic water level
- Use stainless steel pipelines to maintain water quality
- Ensure stable power supply (380V, 50Hz)
- Install control panels with overload and dry-run protection
- Conduct regular water quality and equipment inspections
Proper installation ensures long-term efficiency and safe operation.
